| ULTRA ELITE BENCHTOP Cell Culture Shaking Incubator The ZWYC-240B Ultra Elite Benchtop Cell Culture Shaking Incubator is specifically designed for cell culture, microbial cultivation, and synthetic biology research. It is suitable for universities, biomedical R&D laboratories, and industrial research facilities. By integrating a high-precision Peltier temperature control system, a stable magnetic-drive shaking mechanism, an intelligent control platform, and a low-energy design philosophy, the ZWYC-240B delivers outstanding stability and consistency during long-term continuous operation. Precise control of temperature, shaking speed, and optional humidity and CO2 concentration creates an optimised growth environment for cells and microorganisms, significantly improving experimental reproducibility and data reliability. With its intuitive user interface and comprehensive data management functions, the ZWYC-240B makes cultivation processes visualized, traceable, and fully manageable, meeting both exploratory research needs and standardized, regulated laboratory requirements. High-Performance Magnetic Drive Shaking System High-torque magnetic drive motor combined with FOC vector control technology, ensuring, smooth operation, low noise, and minimal heat generation. Supports clockwise, counter-clockwise, and alternating rotation modes. The classic three-axis eccentric shaking mechanism ensures stable and uniform agitation, ideal for sensitive cell and microbial cultures.

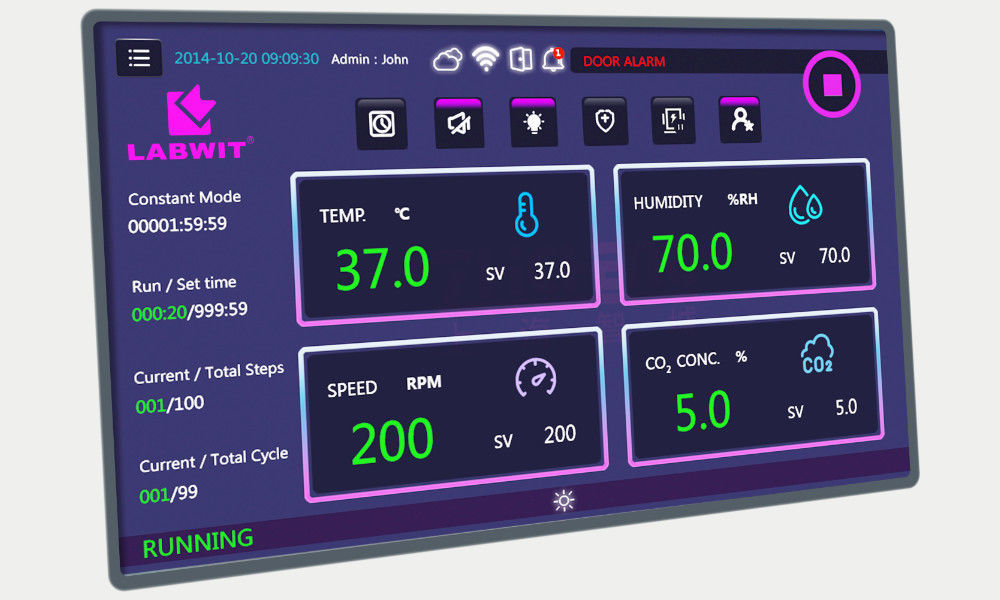

Intuitive & Intelligent User Interface Equipped with a 7-inch high-resolution full-colour touch screen. Multi-parameter real-time display with a clear layout and intuitive operation logic allows users to monitor all key parameters at a glance.

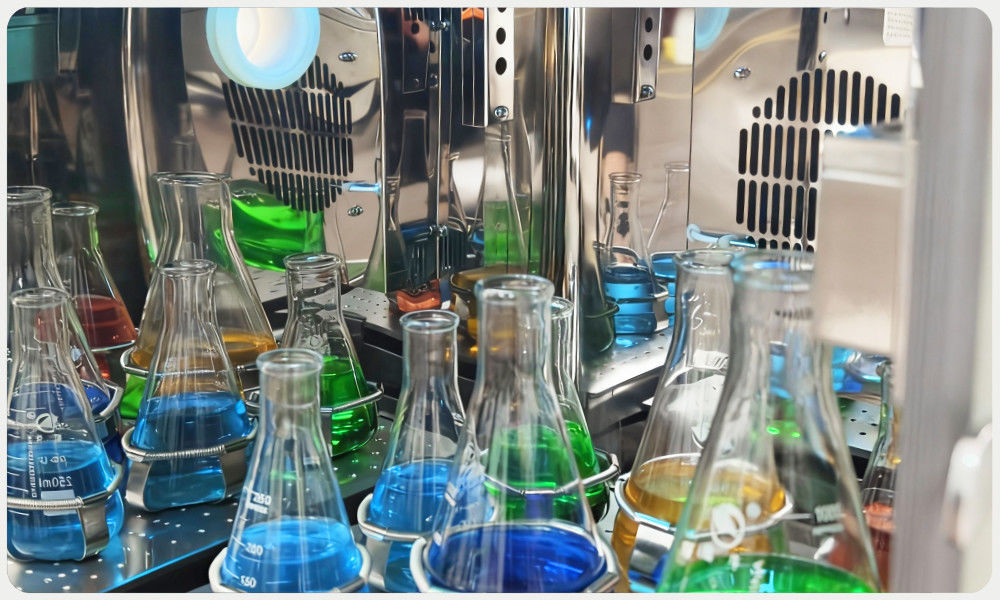

Flexible Control Modes ▶ Supports both fixed value control and programmable control modes, with five (5) built-in preset programs. ▶ Each Program allows configuration of up to 100 segments and cycles, with a maximum duration of 999 hours 59 minutes per segment, fully meeting the requirements of complex, multi-stage, and long-term cultivation protocols. Precision Peltier Temperature Control Customized high-performance Peltier temperature control modules uses solid-state heating and cooling technology without compressors or refrigerants. Compared with traditional compressor systems, it is more compact, quieter, vibration- free, and requires less maintenance, while achieving energy savings of up to 70%. It provides fast thermal response, precise temperature control, and rapid switching between heating and cooling. With no mechanical moving parts, it offers higher reliability and longer service life, making it ideal for applications requiring high stability. Simple structure minimizes cleaning dead zones and simplifies maintenance. Compact Design with High Capacity ▶ Benchtop design, space-saving ▶ Supports double-stacking ▶ Chamber capacity supports 2 × 5L Erlenmeyer flasks

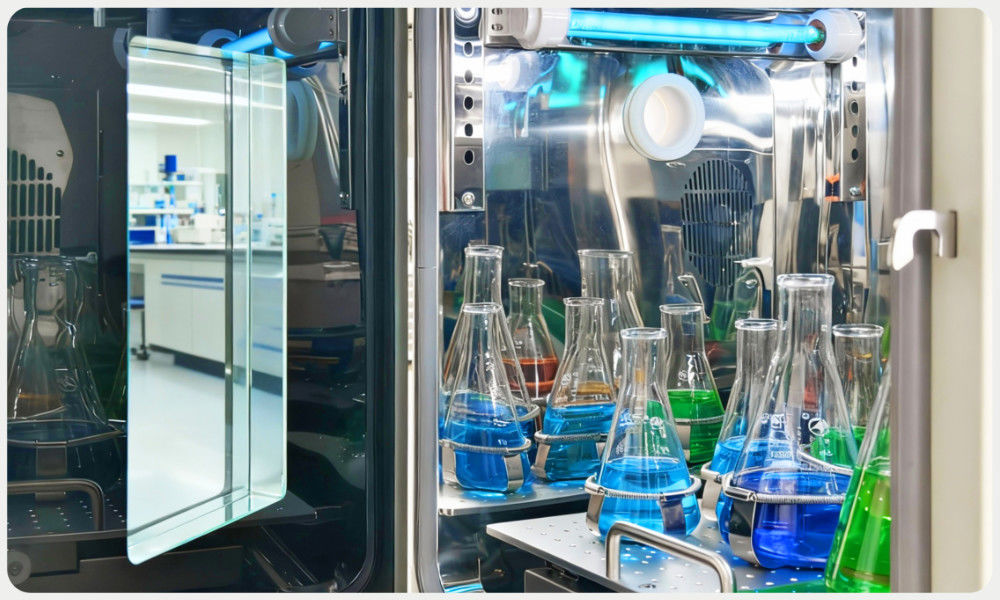

Double-Layer Glass Viewing Window ▶ Double-layer insulated glass improves thermal insulation and prevents condensation. ▶ Inner door with single-piece glass structure enhances sealing performance and reduces contamination risk. ▶ Easy to clean and disinfect, suitable for high-cleanliness environments.

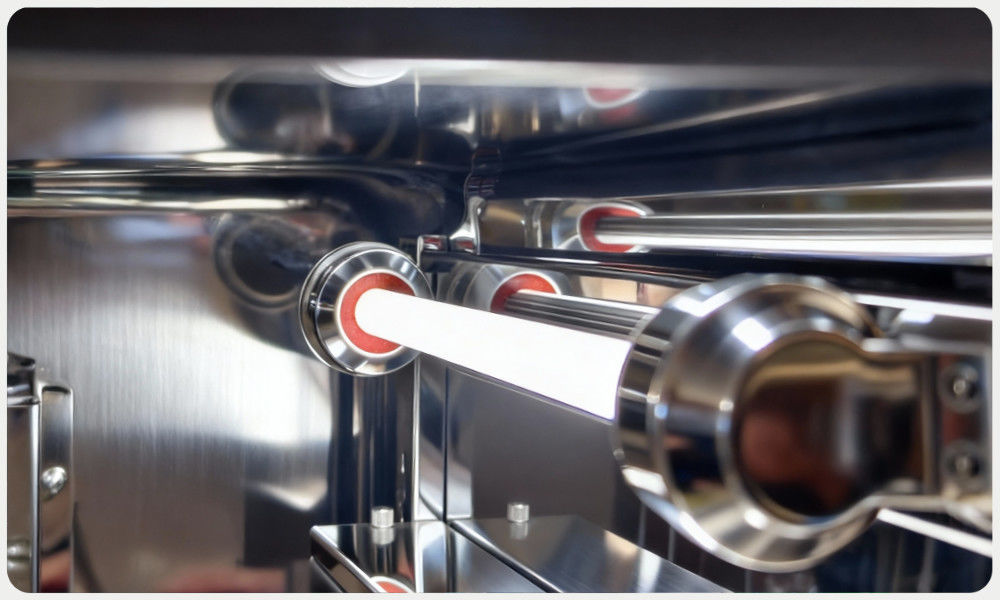

Illumination & UV Sterilization ▶ Internal LED illumination light for optimised chamber visibility. ▶ Built-in high-efficiency UV lamp with programmable timing. ▶ Interlocked with door switch for safe operation.

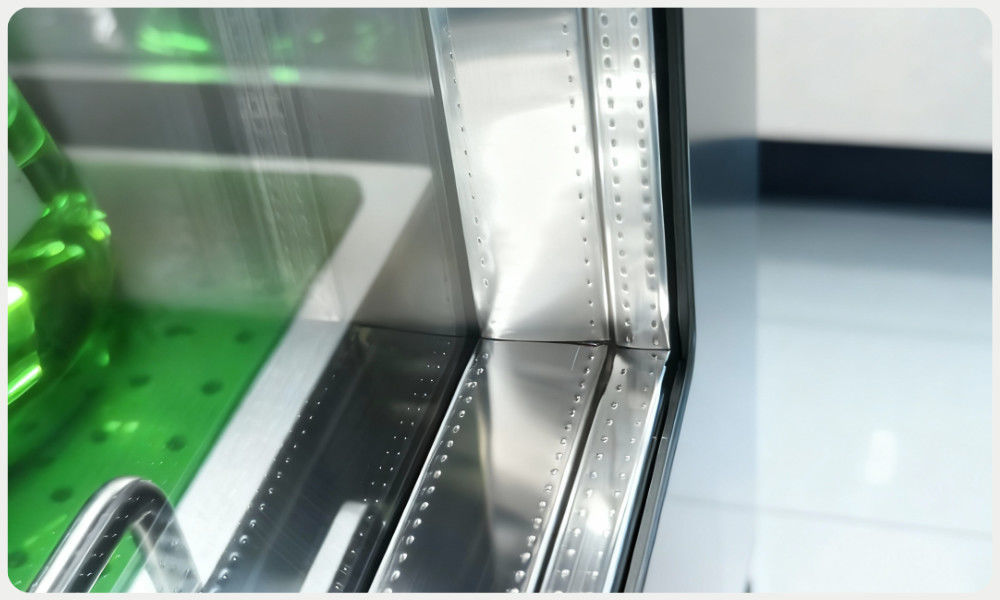

High-Grade Stainless-Steel Chamber with Hygienic Design ▶ The chamber is constructed from high-grade #304 stainless steel with fully rounded-corner design, ensuring easy cleaning and eliminating dead zones. ▶ A waterproof isolation structure allows stable operation in high-temperature and high-humidity environments. ▶ The chamber supports direct water rinsing and disinfection, with a bottom drain port to facilitate efficient cleaning.

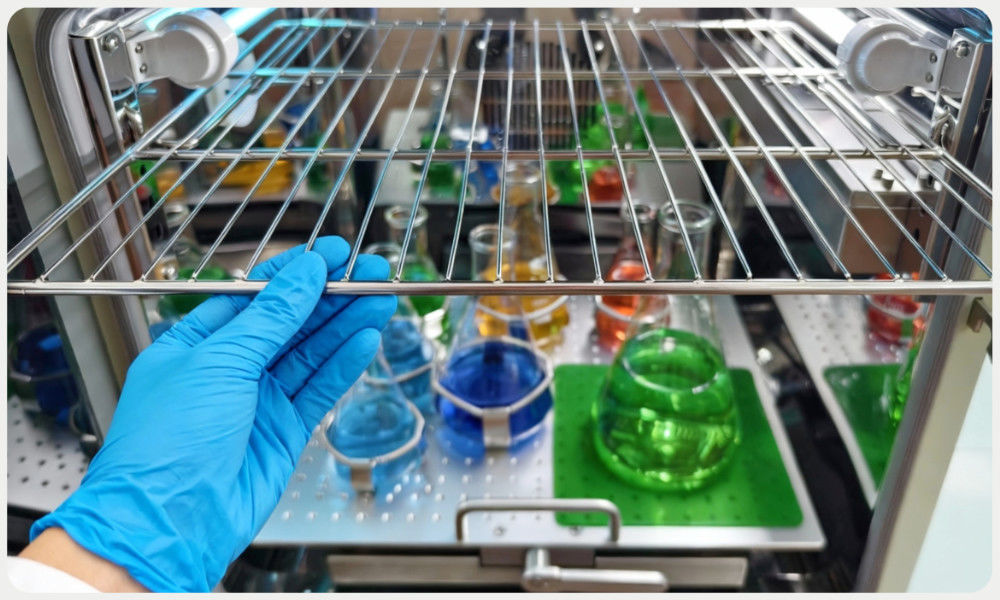

Adjustable Fixed Shelf for Static Culture Height-adjustable shelf enables simultaneous shaking and static cultivation within the same chamber, greatly enhancing experimental flexibility.

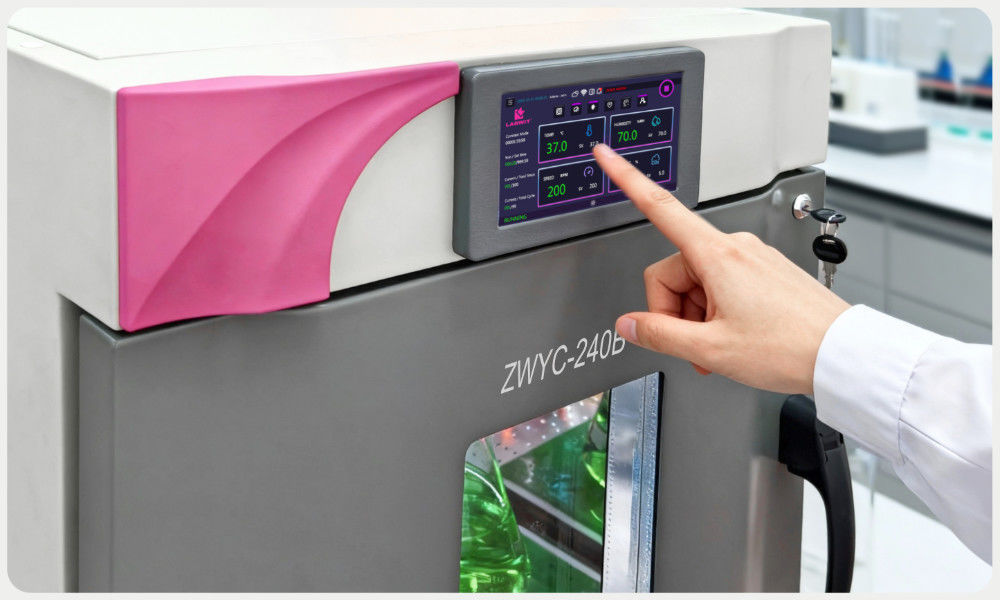

User Access & Security ▶ Three-level user access management with configurable user privileges. ▶ Password protection for critical system parameters and configuration settings. ▶ Prevention of unauthorised access and unintended parameter changes.

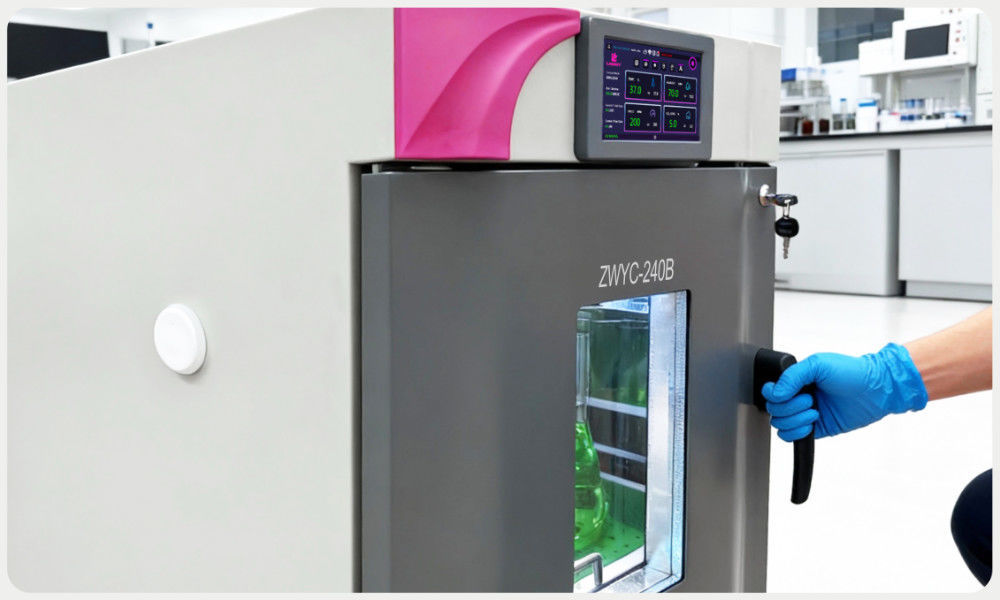

Electronic Records & Data Integrity ▶ Real time checking for operation logs, parameter curves, alarm events. ▶ Secure generation and storage of electronic records. ▶ Data is stored in a non-editable format to ensure authenticity and integrity. ▶ USB export of electronic records in read-only file formats. Audit Trail & Traceability ▶ Automatic recording of operation logs, alarm events, and parameter changes. ▶ Time-stamped audit trails for full traceability of system activities. ▶ Long-term data storage capability of up to 10 years. Comprehensive Safety Protection ▶ Non-volatile memory saves settings and restart after power failure. ▶ Power interruption notification for traceability. ▶ Door-open safety interlock with active braking for shaking. ▶ Audible and visual alarms for high and low parameter deviations. ▶ Sensor fault alarm ▶ Independent leakage protection and over-current protection. ▶ Door lock to prevent unauthorised access.

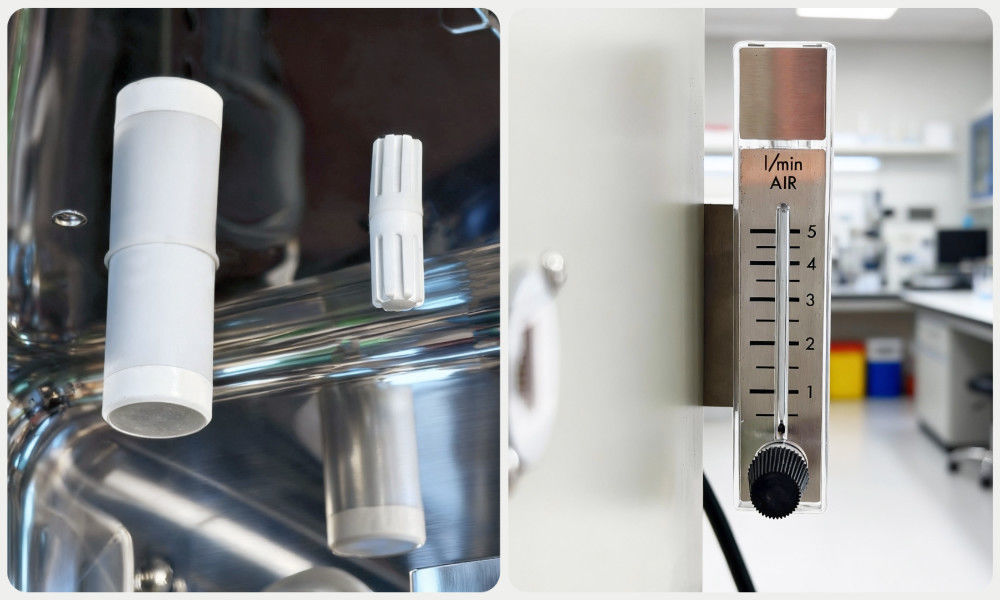

Extensive Optional Configurations ▶ Natural evaporation humidification tray with humidity display. ▶ Active CO2 control system (0–20%, ±0.2% accuracy) using imported infrared sensors. ▶ LED photosynthetic lighting control system (0–100%, multiple spectra available). ▶ TCP/IP Modbus & Wi-Fi for remote monitoring. ▶ Built-in micro printer for real-time data output.
|
