| The new ZWYR-293 represents a significant advancement in research technology, offering a range of new upgrades de- signed to streamline your experiments and elevate your scientific discoveries. With this cutting-edge instrument, we are confident that you will achieve unparalleled precision, efficiency, and reproducibility in your research endeavours. |
| Small in size, big in capacity! | | As a new member of the premium stackable shaking incubator range, the ZWYR-293 features compact design with smaller footprints, and maximized comfort, reliability and versatility for safe handling and incubation of any cultures or products. It’s ideal for any shaking application requiring controlled temperature for microbiology, cell biology, cell culture, tissue culture, biochemistry, environmental engineering, soil testing field temperature range from 4°C to 60°C. Maximized Capacity
with Minimized Footprint

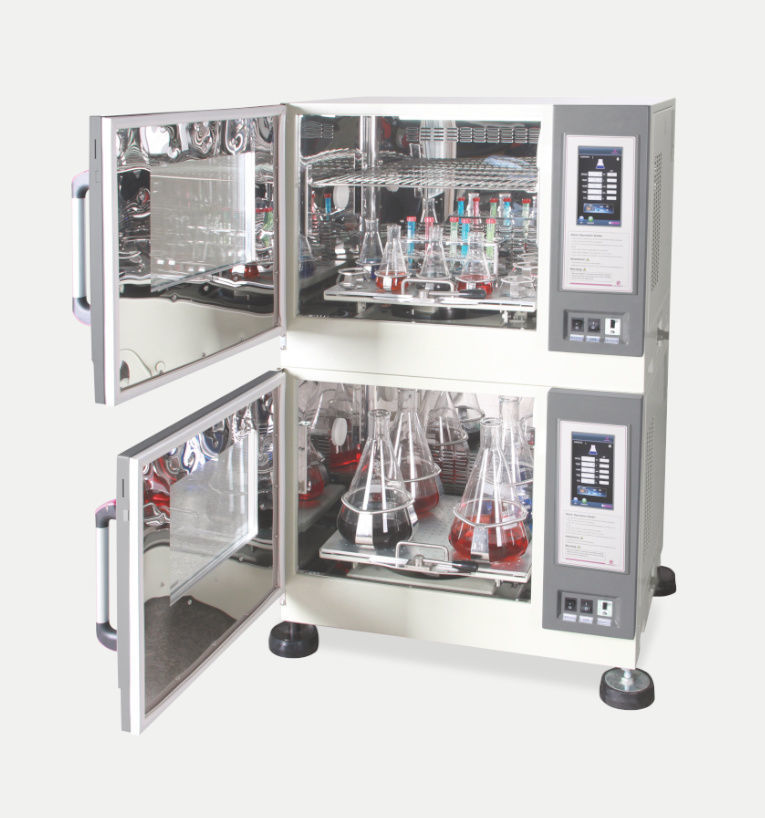

Ideal for benchtop and under-bench, but still up to two ZWYR-293 can be stacked for maximised shaking capacity with minimized floor space. Each unit runs independently. There is no special tools or kits necessary for stacking operation. |
| Intuitive Operation
with Smart Controller | | 7.0’’ large touch screen with higher resolution (800x480 Pixel) and brightness (250nit), making experiment programming and monitoring even more effortless. Customize operational parameters and track real-time parameter, all at your fingertips, ensuring precise control over your samples' environment. Direct Beltless
Driving System Direct beltless driving system together with brushless DC motor provides quiet and vibration free shaking motion, allows extended speed ranges from 30 to 300rpm, ±1rpm, even when unit is operating at top speed with maximum workload. |

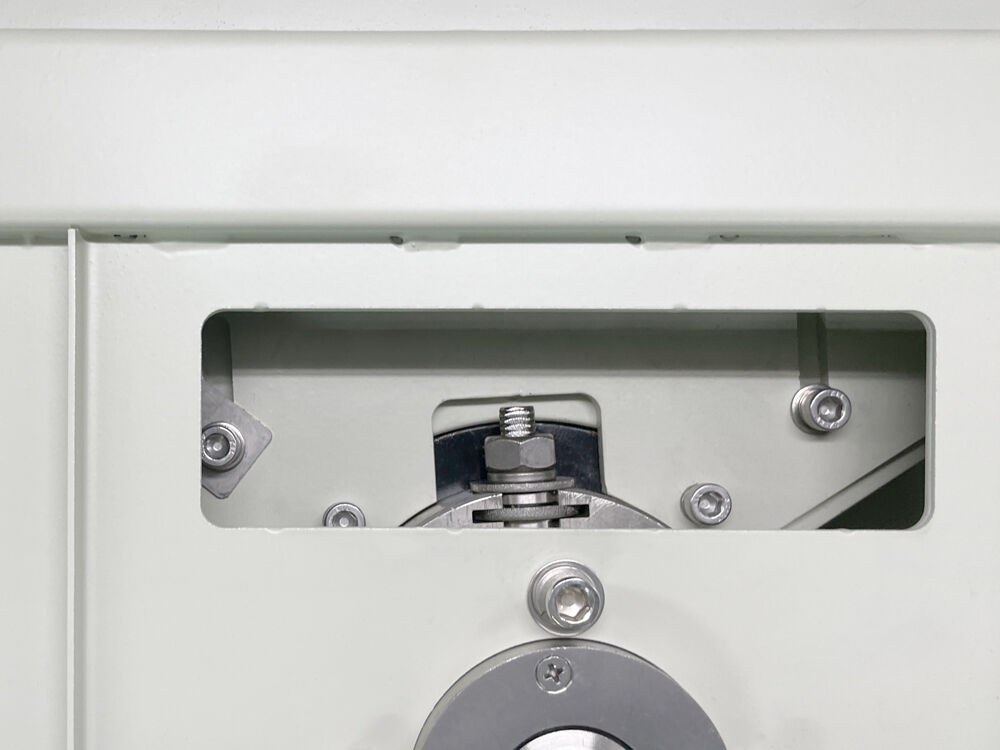

| Stepless Adjustable
Shaking Diameter | |
The shaking diameter can be changed from Ø1-50mm, allowing to handle an even more extensive range of sample types and sizes, tailor the shaking conditions to your exact specifications, from small vials to large flasks or multi-well plates, from gentle swirling to vigorous agitation. |
| Extended Chamber Capacity | |
The predrilled shaking tray (500x400mm) is included as standard accessory, taking up to 9 pcs of 1L Erlenmeyer flasks. One piece of static shelf with adjustable positions (10-20cm from ceiling, 5 levels) included as standard, providing extra flexibility for static incubation. Plain shaking tray is also available as option for use together with stick mats (Max. 4pcs). With internal height above the shaking tray of 415mm to the ceiling, the unit is compatible with 5L flasks even when the photosynthetic LED lighting panel is installed. | | P8021
50ml | P8022
100ml | P8023
250ml | P8024
500ml | P8026
1000ml | P8027
2000ml | P8028
3000ml | P8029
5000ml | P8012
96 Well
Plate | P8010
Tube
Rack | Plain
Tray | 53 | 42 | 23 | 14 | 9 | 6 | 4 | 2 | 12 | 4 | Predrilled
Tray | 33 | 33 | 23 | 14 | 9 | 6 | 4 | 2 | 12 | 4 | |
| Easy Cleaning Chamber and
Contamination Control | | ▶ The chamber is made of quality stainless steel, easy to clean and durable to use. ▶ The chamber bottom is designed to catch and drain excess water and liquid spills in case of any breakages through the outlet on the side. ▶ The UV sterilisation system is isolated from the samples, sterilises chamber air in the back chamber wall to maintain contamination-free conditions within the chamber even when chamber is loaded. |
| Photosynthetic LED Lightings | |
The photosynthetic LED lighting panel can be equipped for the cultivation of those phototrophic organisms, such as plant culture, algae, etc. Light panels available in warm white and blue and red, with light intensity up to 400μmol/ (m²*s). Even light distributions over the shaking tray. Easy programmable for day and night simulations. With height of 10mm, the light panel minimises the impact on the useable internal height above the shaking tray. Complete Protection
For Cell Culture This model has been designed to include many features for the comprehensive of the application and the sample safety, hence providing you with added peace of mind. ▶ Password protection before entering the “SET” page, and preventing unauthorized changes of critical settings. ▶ Key lock prevents unauthorized access to the valuable samples during cultivations. ▶ Automatic stop shaking motion, heating and cooling control when the door is opened. ▶ Sensor failure, door ajar alarm. ▶ Over-current and leakage protection. ▶ Non-volatile memory guarantees data integrity in the event of power interruption. ▶ Audible and visual alarm when parameter deviates from the set point. Data Logging The units are equipped with USB Port as standard, so that operators could save all the operational parameters to a portable USB drive. The controller can save up to 5 days of data internally when USB drive is not connected.
Option: RS-485 interface, Built-in printer, TCP/IP interface. Other Features ▶ Internal chamber equipped with lighting ensure complete visibility. ▶ Fully insulated chamber and door with double folded glass window optimise the energy efficiency. ▶ Ø50mm access port ▶ One piece of predrilled shaking tray included as standard; clamps excluded. Options:
H35cm cabinet base stand (Single unit and Double Stack) H50cm frame base stand (Single unit only) |
