CO2 Resistant Shaker flyer ZWY-304C

Item Code: ZWY304C
Price:  Free

CO2 Resistant Shaker flyer ZWY-304C

Item Code: ZWY304C
Price:  Free
 Description



BENCHTOP

CO₂ Resistant Shaker

The ZWY-304C Benchtop CO₂ Resistant Shaking Incubator integrates advanced magnetic drive technology with a FOC vector control system, delivering exceptional stability, low energy consumption, and excellent durability under harsh environment conditions. Its compact footprint combined with powerful performance makes it an ideal solution for biological research, pharmaceutical development, and multi-scenario laboratory applications requiring reliable orbital shaking under demanding environments.

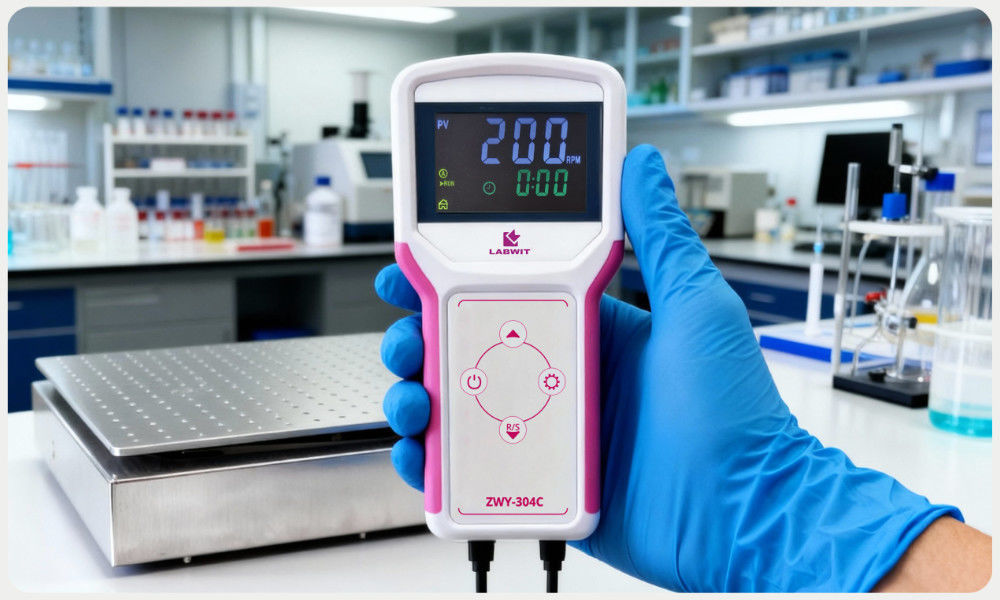

Magnetic Direct Drive System

Equipped with a high-torque magnetic driver, the system operates at low power consumption (18W), with smooth motion, low noise, and minimal vibration. Extremely low heat emission poses no risk the stable temperature control inside the incubator.

Compared with traditional belt-driven mechanisms, the maintenance-free design significantly enhances long-term reliability and service life while eliminating belt wear and particulate contamination.

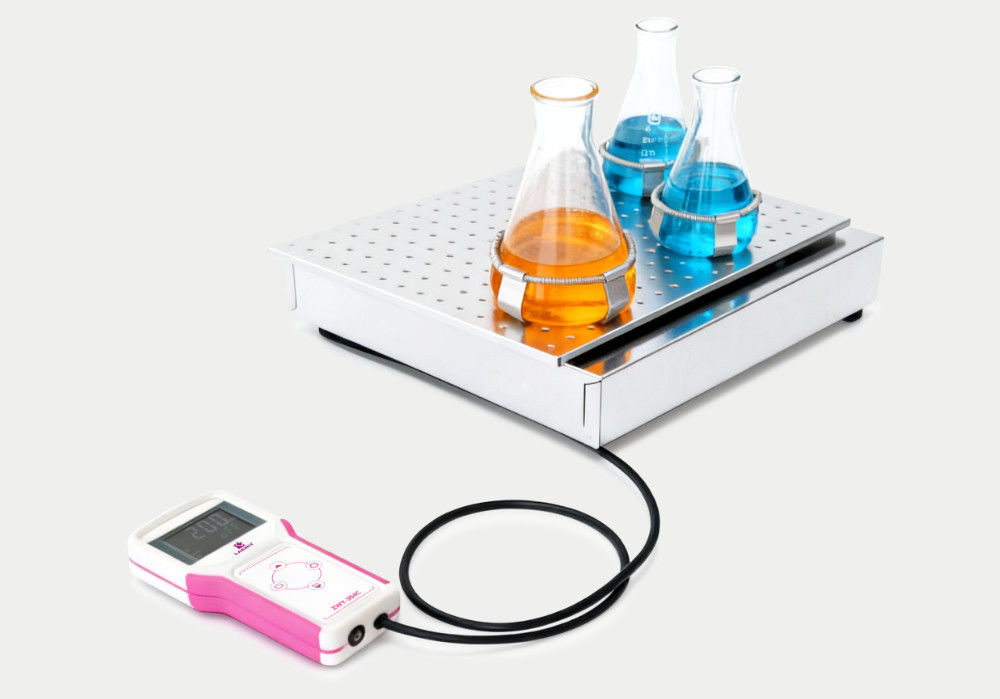

Adjustable Shaking Orbit

10-level orbit diameter adjustment (3–50 mm) allows flexible configuration to accommodate different vessel sizes and experimental requirements, enabling both gentle mixing and vigorous shaking within a single platform. Maximum loading weight up to 7.5kg.

Dual Intelligent Control Modes

Fixed-Value Mode: Quickly set speed and time with intuitive operation.

Program Mode: Supports multi-step programs (up to 9 segments), enabling complex experimental workflows while also covering routine culture applications.

High-Precision Speed Regulation

Speed range 20–350 rpm, accuracy up to ±1 rpm. Excellent uniformity and repeatability are maintained at both low and high speeds, ensuring reliable experimental results.

High-Durability Structural Design

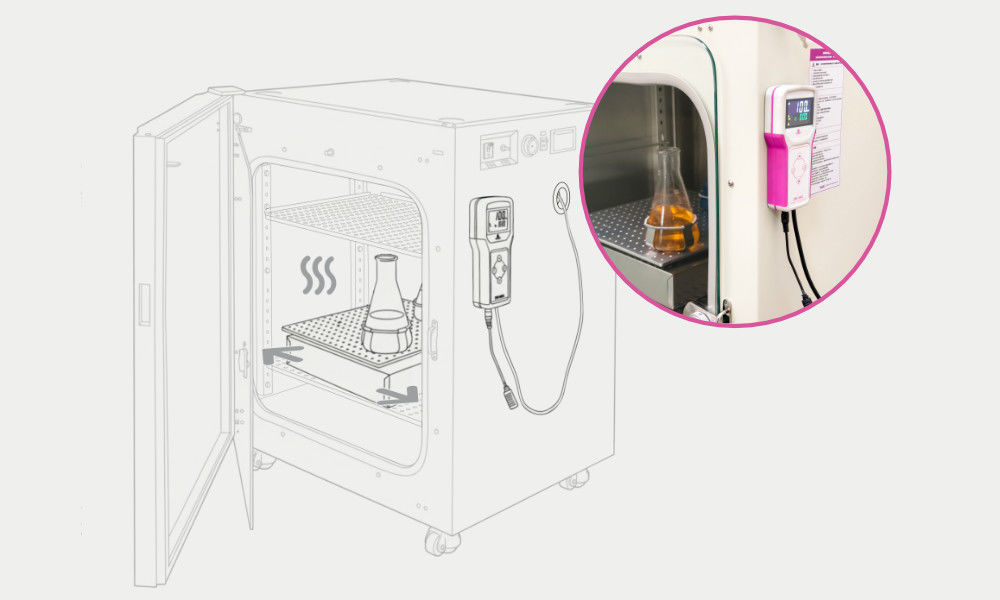

Constructed with high-performance materials suitable for long-term operation in extreme environments 37°C, CO₂ 20%, up to 95%RH; such as CO2 incubators and artificial climate chambers.

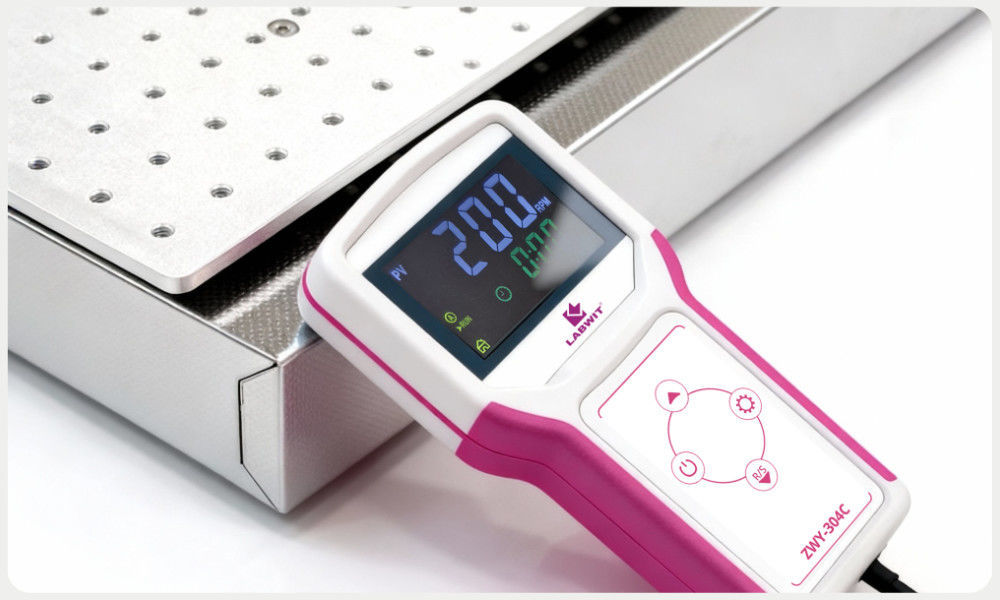

Handheld Intelligent Controller

Independent handheld controller enables remote operation without opening the incubator door, minimizing environmental fluctuations. The intuitive interface provides real-time parameter visibility and simple, efficient operation.

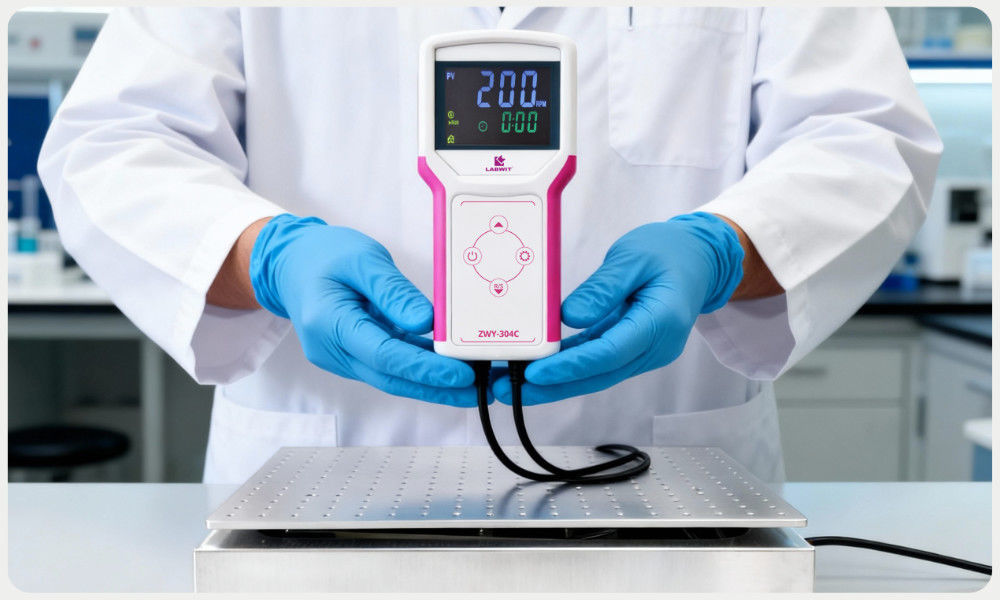

Safety & Intelligent Protection System

Dual Protection: Stall & Overspeed Alarm

Independent handheld controller enables remote operation without opening the incubator door, minimizing environmental fluctuations. The intuitive interface provides real-time parameter visibility and simple, efficient operation.

Power-Failure Memory & Auto-Recovery

Automatically resumes previous operating status after power restoration, preventing experimental interruption and improving workflow continuity.

Parameter Lock & Anti-Misoperation

Critical parameters can be password-protected to prevent accidental modification, ideal for shared laboratory environments.

Selectable Motor Rotation Direction

Supports forward and reverse rotation to accommodate various vessels and experimental needs.

Specifications



Model ZWY-304C
Drive Mode Magnetic Drive
Orbit Diameter 3 / 5 / 10 / 12.5 / 20 /
25 (Default) / 30 / 35 / 40 / 50mm
(10 adjustable levels)
Speed Range 20-350 rpm (no load)
Speed Accuracy ±1rpm
Timer 0–99 h 59 min
Material of Shaker High Graded Stainless Steel
Controller Dimensions (L×W×H) 162×80×30mm
Controller Display LED
Material of Shaking Tray Aluminium
Shaking Tray Size (L×W) 365 x 350mm
Loading Capacity 50ml × 30, 100ml × 16, 250ml × 16,
500ml × 9, 1000ml × 6, 2000ml × 4,
3000ml × 3, 5000ml × 1, Microplate × 6,
Tube Rack × 3
External Dimensions (L×W×H) 365 × 355 × 93mm (with platform)
Packaging Dimensions (L×W×H) 530 × 450 × 250mm
Net Weight 15 kg
Gross Weight 23 kg
Working Environment Temperature: 0 ~ 60°C
Humidity: Up to 95% RH
Power Consumption (Max.) 18W
Power Supply AC 100-240V, 50/60 Hz



  Ordering Information
ZWY-304C Benchtop CO₂ Resistant Shaker 20-350rpm
P6052 Tray for ZWY-304C, 365×350mm, Predrilled
P6053 Tray for ZWY-304C, 365×250mm, Plain
P7030 Universal Spring Pallet for ZWY-304, 365×350mm
P8010 Tube Rack S/S
P8011 Tube Rack ABS Plastic
P8017 Sticky Mat, 20 × 20cm
P8082 Sticky Mat, 20 × 8cm
P8021 O Clamp, S/S, for 50ml Flask, with Spring Retainer
P8022 O Clamp, S/S, for 100ml Flask, with Spring Retainer
P8023 O Clamp, S/S, for 250ml Flask, with Spring Retainer
P8024 O Clamp, S/S, for 500ml Flask, with Spring Retainer
P8025 O Clamp, S/S, for 750ml Flask, with Spring Retainer
P8026 O Clamp, S/S, for 1000ml Flask, with Spring Retainer
P8027 O Clamp, S/S, for 2000ml Flask, with Spring Retainer
P8028 O Clamp, S/S, for 3000ml Flask, with Spring Retainer
P8029 O Clamp, S/S, for 5000ml Flask, with Spring Retainer
P8032 O Clamp, S/S, for 96 Well Plate



   Brochure



Benchtop CO₂ Resistant Shaker Datasheet
