The Ultra ZWYC-293G offers comprehensive solutions for shaking cultivations on small foot print, including active humidity and CO² control technology, offering exceptional flexibility, allowing for traditional shaking incubations with flasks and tubes, as well as micro-volume high-throughput microbial screening with 96-well plates.

Compact size for all-round applications, optimized controlling for reliability and procession, secured protections for precious samples, ZWYC-293G looks after all you care the most shaking incubations for microbial, mammalian, and plant cell cultures.

Maximized Capacity
with Minimized Footprint

Ideal for benchtop and under-bench, but still up to two ZWYC-293G can be stacked for maximized shaking capacity with minimized floor space. Each unit runs independently. There is no special tools or kits necessary for stacking operation. Compatible to stack with former Premium Compact ZWYR-293.

Larger than its predecessor, this unit features a 7.0’’ large touch screen with resolution (800x480 Pixels) and brightness (250 nit), making experiment programming and monitoring even more effortless.

Customize operational parameters and track real-time parameter, all at your fingertips, ensuring precise control over your samples' environment. PID microprocessor controller provide precise temperature control accuracy of 0.1°C. Programmable mode enables user to create personalized program to automate changes to multiple segments of different temperature and speeds setpoints.

▶ The chamber is made of quality stainless steel with rounded corners, easy to clean and durable to use.

▶ The chamber bottom is designed to catch and drain excess water and liquid spills in case of any breakages through the outlet on the side.

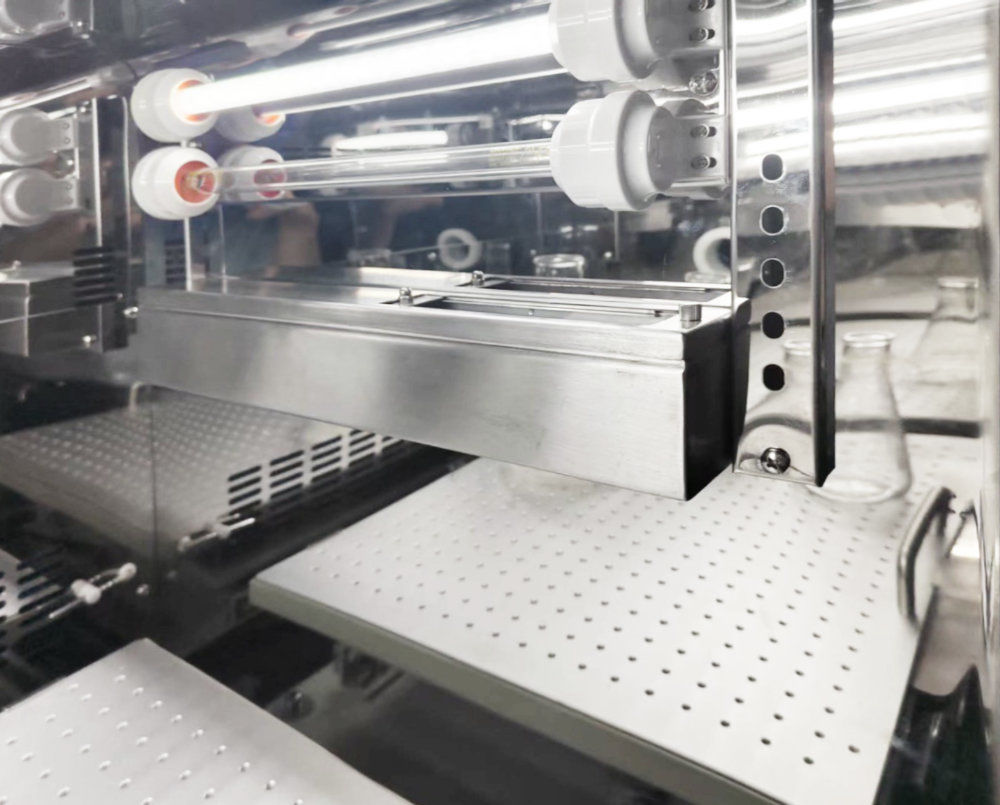

▶ The UV lights sterilizes the chamber with germicidal irradiation to maintain contamination-free conditions. Interlocked with door switch, the UV lights turns off automatically when door is opened to protect user’s safety.

Direct Beltless
Driving System

Direct beltless driving system together with brushless DC motor provides quiet and vibration free shaking motion even when unit is operating at top speed with maximum workload.

Ø1-50mm Stepless Adjustable (standard): Allowing to handle an extensive range of sample types and sizes, tailor the shaking conditions to your exact specifications, from small vials to large flasks or multi-well plates, from gentle swirling to vigorous agitation from 30-300rpm.

Ø3mm for Microplates (Option): Featuring optimal mixing of contents in microplates and deep well plates up to 1200rpm, achieving efficient oxygenation in each of the wells.

This model revolutionizes cell culture technology by aligning with the trends of automation and high precision in handling and analytical work through high-throughput microbial screening.

▶ The predrilled shaking tray is included as standard accessory, clamps are excluded.

▶ One piece of static shelf with adjustable positions (10-20cm from ceiling, 5 levels) included as standard, providing extra flexibility for static incubation.

▶ Plain shaking tray is also available as option for use together with stick mats (Max. 4pcs).

▶ With internal height above the shaking tray of 415mm to the ceiling, the unit is compatible with 5L flasks even when the photosynthetic LED lighting panel is installed.

For cultivations of mammalian cells and algae, well maintained CO² concentration is crucial to keep the pH value of the solution media at healthy level.
Labwit incorporates a word class single beam, dual wavelength IR CO² sensor, which guarantees superior performance and accuracy under all situations.

▶ The photosynthetic LED lighting panel can be equipped for the cultivation of those phototrophic organisms, such as plant culture, algae, etc.

▶ Light panels with light intensity up to 220 μmol/(m2*s) guarantee even light distributions over the shaking tray.

▶ Available in Red & Blue, and Warm White.

▶ Easy programmable for day and night simulations.

▶ With height of 10mm, the light panel minimizes the impact on the useable internal height above the shaking tray.

Complete Protection
For Cell Culture

This model has been designed to include many features for the comprehensive of the application and the sample safety, hence providing you with added peace of mind.

▶ Password protection before entering the “SET” page and preventing unauthorized changes of critical settings.

▶ Key lock prevents unauthorized access to the valuable samples during cultivations.

▶ Automatic stop shaking motion, heating and cooling control when the door is opened.

▶ Sensor failure, door ajar alarm.

▶ Over-current and leakage protection.

▶ Non-volatile memory guarantees data integrity in the event of power interruption.

▶ Audible and visual alarm when parameter deviates from the set point.

Humidity is important for long term cell cultivations with flasks as well as where micro plates are used. Active controlled humidification system can effectively reduce evaporations during cultivation, hence, preventing the samples from drying out.

The humidification system of Ultra Compact features 140℃ steam direct injection into the chamber and active PID control with world class humidity sensor for utmost accuracy of measurement.

Data Logging

The units are equipped with USB Port as standard, so that operators could save all the operational parameters to the portable USB drive. The controller can save up to 5 days of data internally when USB drive is not connected.

Option: RS-485 interface, Built-in printer, TCP IP interface.

Other Features

▶ Internal chamber equipped with lighting ensure complete visibility.

▶ Fully insulated chamber and door with double folded glass window optimize the energy efficiency.

▶ Ф50mm access port.

▶ One piece of predrilled shaking tray included as standard, clamps excluded.

▶ H15cm base stand.
   Options:
   H35cm cabinet base stand (Single Unit and Double Stack)
   H50cm frame base stand (Single Unit Only)
