Drying Ovens

LABWIT drying ovens are ideal for drying, heating, ageing, sterilizing, testing, curing and storing. From small to very large capacity, 30L to 600L of chamber volume. Standard applications with fixed value control or high demand for program control. Back heating with horizontal air circulation or bottom heating with vertical air circulations. Each individual unit complies with the strict requirements of LABWIT QA standard is ready to perform to its best.



logpdf_download.png - smallDrying Oven V2016 V1.0.pdf






Back Heating Ovens, A+5-200°C new_icons.gif - small

    • Back heating structure, the circulating fan in the back plenum distributes horizontal air flow evenly over the samples on each shelf
    • Temperature control from ambient+5 to 200°C
    • Available for Programmable and fixed value
    • LCD display control panel and non-volatile memory
    • P.I.D microprocessor control with integrated auto-diagnostic system
    • Multi safety features against overheating , leakage, or over-current.
    • "Push & Lock" air tight door closure system.
    • Sleek profile design.
Model NO. Internal Volume (L) Grid Plate Size (WxD) (mm) Chamber Dimensions (WxHxD) (mm) External Dimensions (WxHxD) (mm) Power /Plug Configuration
ZXRD-B5030 30 235x255 300x300x340 490x465x720 900W/10A
ZXRD-B5055 55 285x295 330x360x450 520x525x830 1300W/10A

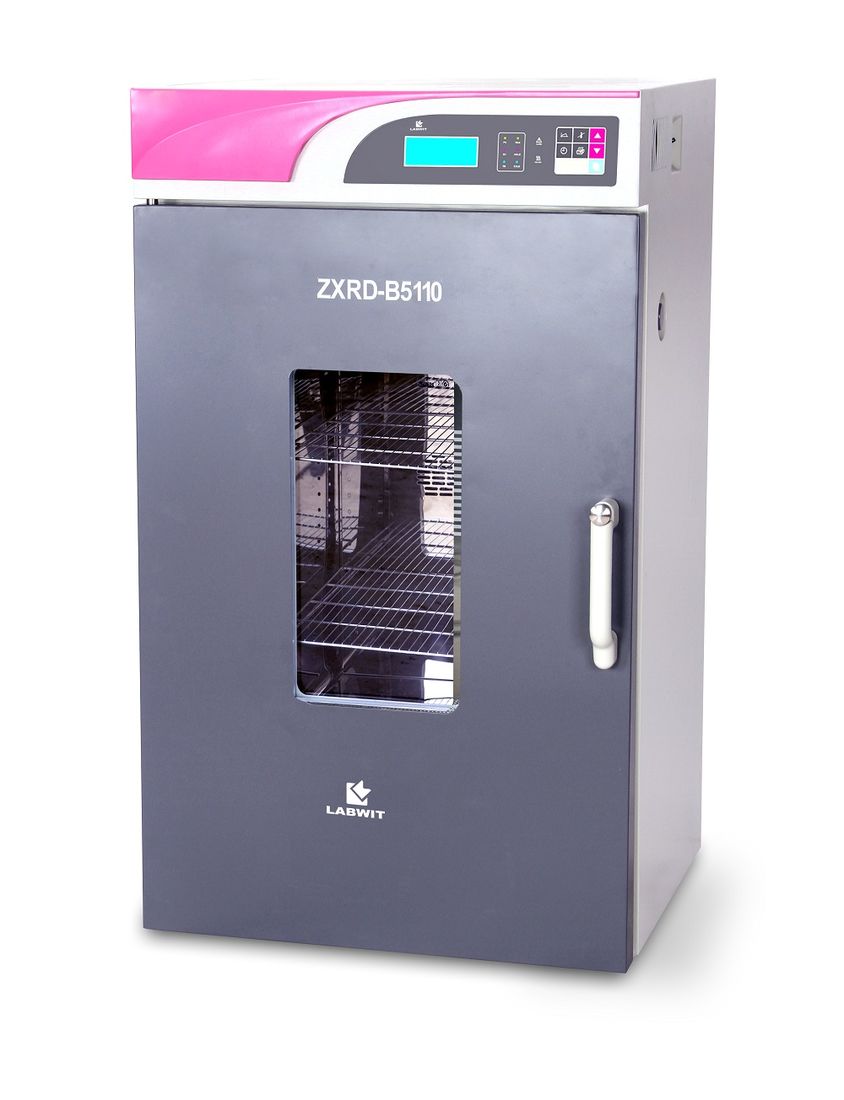

ZXRD-B5110 110 335x375 420x400x650 610x565x1030 2100W/10A
ZXRD-B5210 210 455x485 500x550x750 690x715x1220 2500W/15+A






Back Heating Ovens, A+5-300°C

    • Back heating structure, the circulating fan in the back plenum distributes horizontal air flow evenly over the samples on each shelf
    • Temperature control from ambient+5 to 300°C
    • Fixed value temperature control. Programmable function available as option.
    • LED display control panel and non-volatile memory
    • P.I.D microprocessor control with integrated auto-diagnostic system
    • Multi safety features against overheating , leakage, or over-current.
Model NO. Internal Volume (L) Grid Plate Size (WxD) (mm) Chamber Dimensions (WxHxD) (mm) External Dimensions (WxHxD) (mm) Power /Plug Configuration
ZXRD-7080 80 319x330 375x375x550 565x505x930 2100W/10A
ZXRD-7140 140 385x405 450x450x685 640x580x1065 2300W/15+A
ZXRD-7230 230 475x485 520x550x800 710x680x1270 2700W/15+A

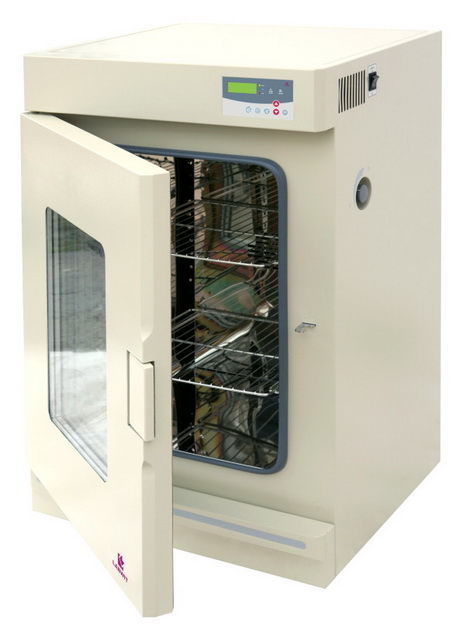

ZXRD-A7080




Bottom Heating Ovens, A+5-200°C new_icons.gif - small

    • Bottom heating structure, the circulating fan in the bottom plenum distributes vertical air flow, best option for powder drying application by minimizing air turbulance.
    • Temperature control from ambient+5 to 200°C
    • Available for Programmable and fixed value
    • LCD display control panel and non-volatile memory
    • P.I.D microprocessor control with integrated auto-diagnostic system
    • Multi safety features against overheating , leakage, or over-current.
    • "Push & Lock" air tight door closure system.
    • Sleek profile design.
Model NO. Internal Volume (L) Grid Plate Size (WxD) (mm) Chamber Dimensions (WxHxD) (mm) External Dimensions (WxHxD) (mm) Power /Plug Configuration
ZXFD-B5040 40 245×338 345x300x385 535x465x765 1000W/10A
ZXFD-B5090 90 389×393 400x445x485 590x610x865 1500/10A

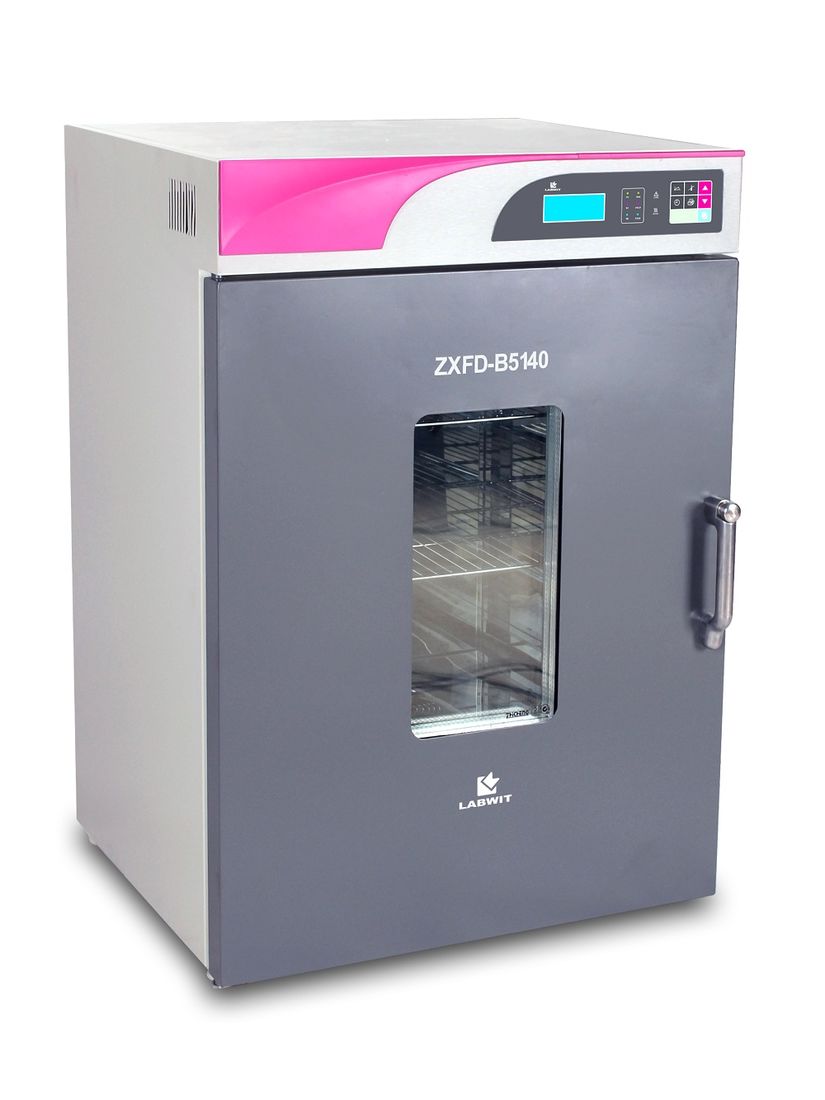

ZXFD-B5140 140 413×493 500x470x600 690x635x980 2100/10A
ZXFD-B5250 250 493×595 600x550x750 790x715x1220 2500/15A+
ZXFD-B5430 430 596x694 700x650x950 890x815x1420 2700/15A+
ZXFD-B5600 600 725×789 800x780x1000 990x910x1470 2900/15A+
